Arc

Drawing arcs and circles

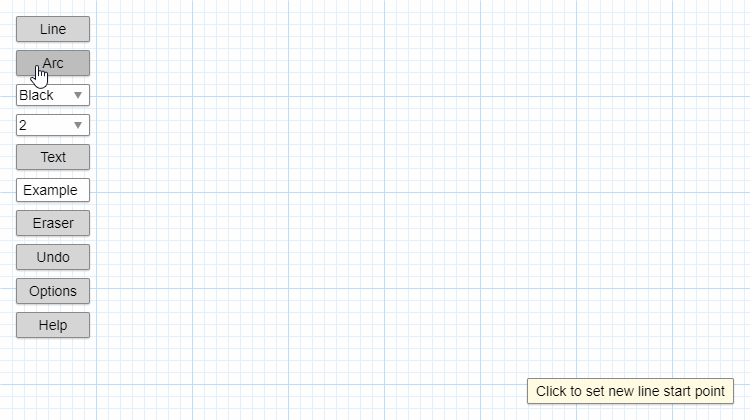

First click to set the center point, second click sets the radius and start angle, third click sets the end angle and completes the arc.

Arcs are always draw counterclockwise, so pick your start angle with that in mind.

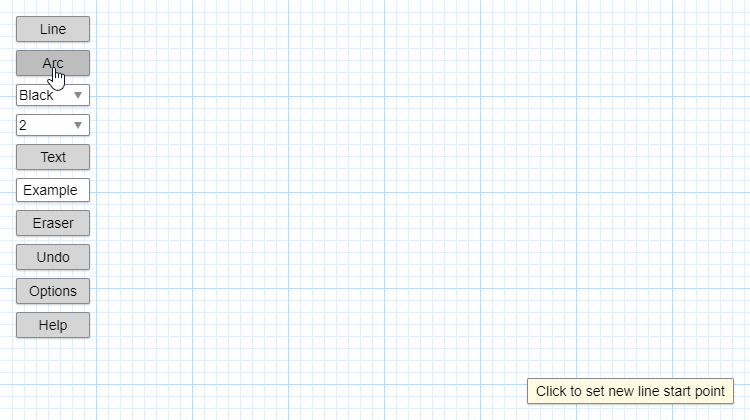

Make the start and the end angle of the arc the same to draw a circle.

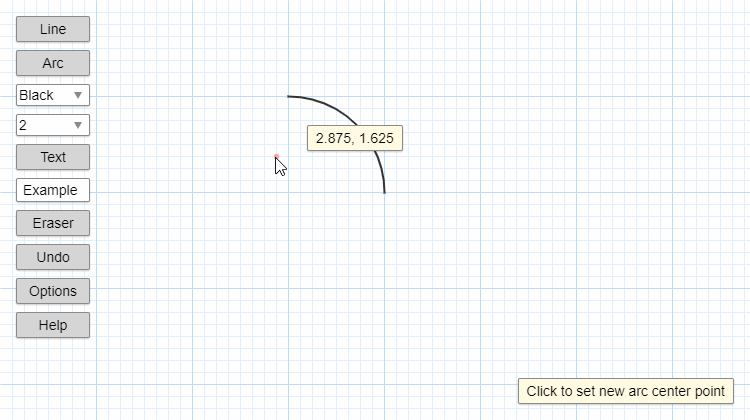

Use the drop-downs to select the arc color and thickness.
